Aircraft Location: FL USA
Airframe
35,558 Hours Total Time- 28,651 Landings/Cycles
Engine(s)
ENGINES:- Model: JT8D-7B On Condition TBO -5 year Intervals-
Engine 1: 63,572 Total Time Since New Being Overhauled Now-
Engine 2: 6699 Total Time Since New Due Overhaul in July-
Engine 3: 23,243 Total Time Since New Overhauled last year -good
till 2009.ADDITIONAL:- General: Stage III hush kits
APU
AUXILIARY POWER UNIT:- AlliedSignal GTCP-85CK
Avionics & Radios
- ADF: Dual Collins- Communication Radios: Triple w/8.33
spacing- DME: Dual Collins- FMS: Dual Universal UNS-1C w/GPS &
World-Wide database- Hi Frequency: Dual Collins w/Motorola-
SELCAL INS: Litton LTN-92- Navigation Radios with FM immunity-
Radar Altimeter: Dual- SATCOM w/portable fax capability- TCAS:
Dual AlliedSignal TCAS-II- Dual Collins air data computers-
Comms: Dual WT 2000- Navs: Dual Collins 51RV 2B- Flight
Directors: Dual Collins FD 109- Autopilot: Dual Sperry SP 150-
Radar: Primus 90 Color- Transponder: Dual King KXP Mode S- ADF:
Dual Collins ADF 51 Y7- Radar Altimeter: Dual Bendix ALA 51A-
FDR Provisions- Cockpit Voice Recorder
Interior
Passengers: 30 configuration: Cabinetry: Dining area tables
Entertainment Equipment: VHS, DVD, CD audio, Airshow 200, TV
monitors Lavatory: Toilet w/shower. Accessories: Bidet &

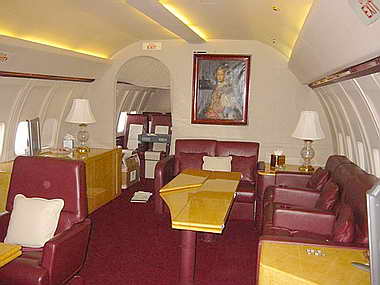

vanity unit General: Three compartment interior. Seating:

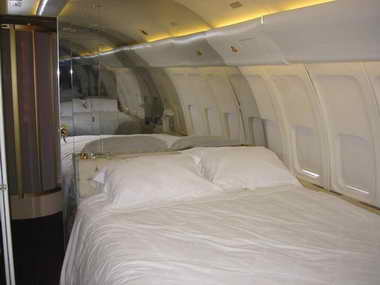

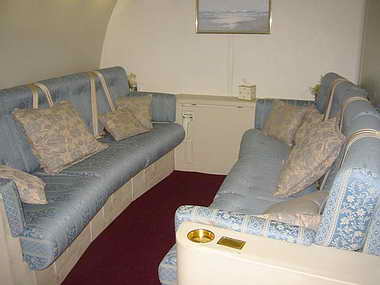

Private lounge w/two 4-place couches, bedroom w/queen-sized
bed, main lounge w/two curved sofas & 8-place seating, dining/conference
area w/two 4-place clubs. Refreshment Equipment: Aft full-size
gourmet galley
Exterior

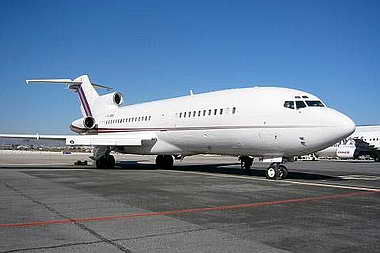

Overall Matterhorn White with Maroon and Tan Stripes.
Repainted 11/98 in good condition.
Maintenance and Inspection Information
RVSM, Aging Airliner A.D.'s c/w as reported 11/8/04, Corrosion
Check/ D check performed last year,Airline Low-Utilization
Certification, all engines S.B.-6038 compliant. A.D. 98-11-03
compliant.- No Damage History- Stage 3 Noise Certification
Additional Remarks
WEIGHTS (lbs.):- MGTOW 169500, LANDING 142500, BOW 98300- FUEL
CAPACITY 68000The range with FAA Reserve of fuel is 3300 nm.
Endurance is 8hrs. 30 mts. (3,900nm)Specifications and/or
descriptions are provided as introductory information.They do
not constitute representations or warranties of Flight Source
International Inc.Accordingly, you should rely on your own
inspection of the aircraft
