Engines: CFE-738-1-1B (AlliedSignal
& GE)
#1 #2
4,200
4,090
Hours since New
2,545
2,494
Cycles since New
235
235
Hours since CZI
APU: Garrett GTCP-36-150-F2M
1,338 Hours since New
One U.S. Corporate Owner since New
New Paint January 2008, Duncan-Lincoln
Fresh C Inspection January 2008, Duncan-Lincoln
Fresh Gear Inspections (6 Year/3000 Landing) January 2008,
Duncan-Lincoln
Fresh Engine CZI's, January 2008
Engines & APU Enrolled on JSSI (100% Coverage)
Maintained under the OCIP Inspection Program
CAMP Maintenance Tracking Program

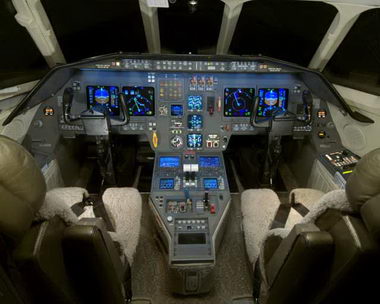

Avionics:
Collins Pro Line 4 Avionics Suite 4-Tube EFIS
Dual Collins VHF-422C Comms w/8.33 Spacing
Dual Collins VIR-432 Navs w/FM Immunity
Dual Collins ADF-462 ADF's
Dual Collins DME-442 DME's
Dual Collins TDR-94D Transponders (Mode S with Enhanced
Flight ID)
Dual Collins 6100 FMS
Dual Collins GPS
Dual Honeywell Laseref IV IRU
Collins ALT-55B Radio Altimeter
Dual Collins 850C Air Data Computers
Collins APS-4000 Auto Pilot
AirCell Access II Iridium Phone (New 1/08) with 3 Handsets
Collins TCAS-94 with Change 7
Mark V EGPWS with Windshear
Dual Collins HF 9000 with Coltech 2 Ch. Selcal
Collins AHS-85E Altitude Heading Ref System
FADEC Mach Hold System
Honeywell Digital Flight Data Recorder
Honeywell Lightweight SS Cockpit Voice Recorder
Meggit SFD MK2
Collins TRW-850 Weather Radar
Socata ELT-97 ELT
Dual RTU-4220 Radio Tuning Units
Features/Options:
Airshow 400 Cabin Display System
Two 15" Cabin Monitors (Fwd and Aft)
Two Rosen 5.6" Side Ledge Plug-in LCD Monitors
RVSM and RNP 10 Compliant
Teleflex Recognition Lights
Dual Davtron M877 Digital Clocks
TIA Coffee Maker
TIA Galley Oven
Baker International VHS & DVD Player
ERDA Jump Seat
115 Cu. In Oxygen Bottle
Cabin Duct Temp Indicator System
KGS Electronics 115V 60 Hz Power Inverter
(9) 110V Outlets
TIA Microwave
Interior:

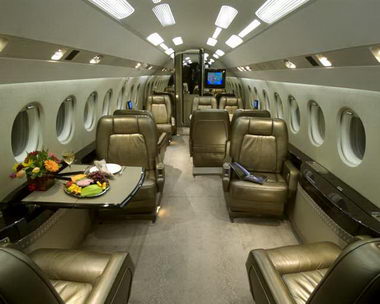

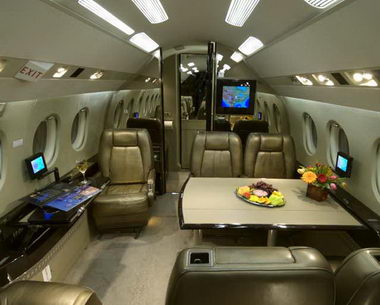

Striking ten (10) passenger fireblocked interior featuring a
forward four (4) place club arrangement and an aft left-hand
side four (4) place conference grouping, opposite a low-profile
two (2) place club arrangement. There is also an ERDA Jump
Seat installed for a third crew member. The high gloss
cabinetry includes the galley, bar cabinet, table and side
ledges which feature the custom rounded styling. All seating
is done in luxurious Pewter Leather with pullout tables
located at each seating location. The elegantly patterned
carpeting is a coordinating Light Pewter color.
Additional cabin amenities include nine (9) 110V outlets
located throughout the cockpit and cabin: two (2) in the
cockpit, two (2) in the cockpit closet, four (4) in the
cabin, and one (1) in the aft lavatory.

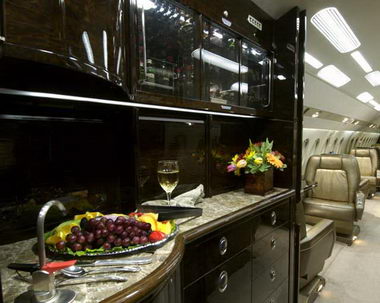

Forward full service galley includes the following TIA
equipment, Coffee Maker, Oven and Microwave.
Exterior:

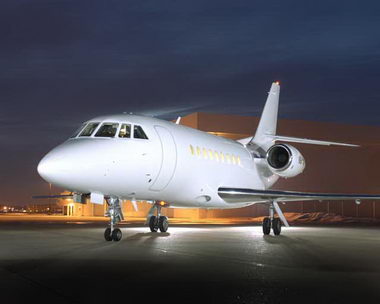

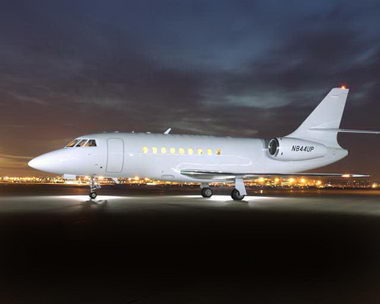

Overall Vestal White. New Paint, January 2008 by Duncan
Aviation (Lincoln).
Weights:
Empty Weight: 21,947 Lbs
Max Ramp Weight: 36,700 Lbs
Max Take-off Weight: 36,500 Lbs (Mod M57 c/w Oct. 2001)
Basic Operating Weight: 22,661 Lbs
Max Landing Weight: 34,500 Lbs (Increased per SB186)
Max Zero Fuel: 28,660 Lbs
Max Fuel: 12,155 Lbs |
