Airframe: 0 Hours
Delivery June 2009
Deposit due Now: $ 1,250,000.00
December: $ 6,750,000.00
Delivery June 09: $ 14,203,000.00; Plus Options
Standard Equipment:

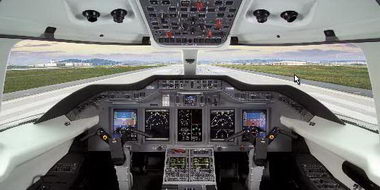

Single Honeywell Primus EPIC Integrated Avionics System
including: Five Honeywell Flight Displays 8"x10" (LCD)
Single Honeywell AFCS Automatic Flight Control System w/Dual
Flight Guidance Computers
Two Honeywell RCZ-833 Transceivers w/8.33 KHz Spacing
Two Honeywell RNZ-850 Receivers VOR/LOC Glideslope/Marker
Beacon
Two Honeywell Laseref V Inertial Reference Systems
Two Honeywell Flight Management Systems (Meeting MNPS, RNP-5
& RNP-10 Requirements)
Two Honeywell Global Positioning Systems (GPS) 24 Channel
Single Honeywell RNZ-859ADF
Two Honeywell RNZ-850 DME's
Two Honeywell RCZ-851E Transponders Mode S Diversity with
Dual Antennas
Two Honeywell ADC Air Data Modules - RVSM Capable
Two HoneywellAV-850 Audio Systems
Single Honeywell 880 Turbulence Detection Weather Radar
Single Honeywell AA-300 Radio Altimeter
Single Honeywell Mark V Enhanced Ground Proximity Warning /
satisfies Class A TAWS
Single Collins HF-9000 High Frequency Transceiver w/Selcal
Single Collins ACSS TCAS 2000 Traffic Alert and Collision
Avoidance System
Single ACSS FA2100 Cockpit Voice Recorder with 2 Hour
recording capability
Single Airtex C 406-2 ELT (SAR Type)
Single Meggitt Secondary Flight Display System
Optional Equipment Flight Deck:
Option Item/Description Installed List Price
AV62 Observer Audio and Oxygen
Adds audio jacks and an oxygen outlet at two locations in
the cabin. One is installed on the inboard face of the left
forward vestibule cabinet (behind an access door) and the
other is adjacent to the seat located in the forward club,
fwd facing right side position. Production affectivity: RC-20
& after
$ 13,125
AV80 Honeywell CMF (Communication Management Function) 11
CMF serves as an Aircraft Communications Addressing and
Reporting System (ACARS). Information desired is requested
and received by the flight crew through either MCDU and is
transmitted to a network of VHF ground stations via VHF
Datalink. The system provides the flight crew with the
following services: flight planning, inflight weather
reports, Air Traffic Services (ATS), and text messaging.
This system provides textual information only on the MCDU.
The VHF Datalink option (AV40), is required to serve as the
communication path. Subscription service with an ACARS
service provider is required. $ 127,365
AV40 VHF Datalink
Honeywell TR-86A VDR (VHF Digital Radio) communications
module provides a VHF datalink path for the Communication
Management Function (AV80). Requests made through the CMF
are transmitted to the SITA network of VHF ground stations
via VDL communications (VHF Data Link). $ 56,490
AV180* Elementary/Enhanced Transponder Upgrade Negl 24,900
Upgrade of both RCZ-851E transponders to comply with
elementary and enhanced transponder requirements that apply
in European airspace. $ 26,145
AV200 Electronic Charts & Enhanced Map Overlays $ 11,760
Optional Equipment Cabin:
CA105 Forward Cabin Pocket Doors
Installs two sliding pocket doors, one in each forward cabin
partition. $ 35,175
Information & Entertainment Systems CE200 2nd 15" Cabin LCD
Display
2nd display mounted on forward side of aft LH main cabin
partition. $ 23,625
MS122 External Refuel Panel
Allow single point refuel operation to be conducted from the
exterior of the airplane without powering up avionics. $
36,750
MS156* Long Range Oxygen
Two 50 cu ft (1,415 liters) oxygen bottles are installed as
standard for a total capacity of 100 cu ft (2,830 liters).
This option adds two additional 22 cu ft (622 liters)
bottles for an Additional capacity of 44 cu ft (1,244 liters).
Total aircraft capacity if this option is Selected is 144 cu
ft (4,074 liters). $ 26,040
MS211 Cockpit Observer Chair with dedicated storage
Removable observer chair located in aisle immediately behind
crew chairs. Storage for the chair is provided in the FWD
closet. This chair is belted and approved for takeoff and
landing.
Observer Audio and Oxygen option (AV62) is required.
Required crewmember use only Production affectivity: RC-20 &
after. $ 94,815
MS230 Cockpit Floor Storage Compartment
Can be utilized for four Jepps storage binders. $ 11,655
MS372 Belted Lavatory Seat
Adds seat belt and forward bulkhead pad to the toilet seat
which enables a passenger to use this seating location for
takeoff and landing.
If CA205 (Divan) and CE372 (Belted Lavatory Seat) are both
selected AV87 (Flight Data Recorder) is required for Part
135 operations. $ 4,410
MS442 Portable Oxygen Bottle in Cabin
Small portable breathing oxygen bottle with mask that
installs inside aft left vestibule cabinet. $ 4,515

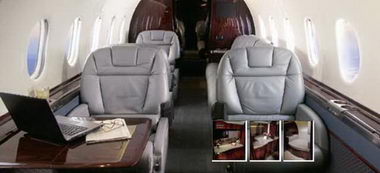

Interior:
Wood Rosewood (Limited) RAY 060720-1
Headliner 3582 Almond Ultra Suede
Countertop Formica, Desert Mist 318
Side Panel Accent Material, Closet Drapes, Pillows, The
Fifties 231-81 Carefree Ivory, Sina Pearson
Chairs, all Leather RH 3700 Custom Oyster, Edelman Leather
Carpet, Stevenson 132 Reg. # Q21386M-B - Scott Group
Exterior:
Customer Colours and Styles still available to Spec |
