This aircraft was manufactured
as a 900EX in 2002 and used as the test bed aircraft by
Dassault for the EASy cockpit. It was removed from
experimental status and issued a certificate of
airworthiness January 2006.
Aircraft is under warranty until Jan. 2011 or 5,674 hours
for standard avionics, non-primary accessories, components
and accessories. It is under warranty until Jan 2016 or
10,674 hrs for primary structures.
3,688 Hours
2,284 Landings
Engine(s): Honeywell TFE-731-60, Enrolled on MSP
Left - S/N: P112403, 3,428 Hours, 1,652 Cycles
Center - S/N: P112361, 3,503 Hours, 1,717 Cycles
Right - S/N: P112402, 3,282 Hours, 1,634 Cycles
APU: S/N: P412, Garrett GTCP36-150, Enrolled on MSP
Maintenance Condition:
First C of A: February 2006
Avionics:
Honeywell Primus EPIC EASy Avionics Suite
Honeywell Flight Display System (4 14" LCD /2 Controls)
Triple Honeywell TR-866B COMM's
Dual Honeywell NV-875B NAV (VOR/ILS/MKR)
Honeywell Auto-Throttle System
Data Acquisition Central Maintenance Computer
Dual Honeywell GPS-90X
Honeywell TCAS 2000
Honeywell EGPWS Warning System
Dual Honeywell DM-855 DME
Dual Honeywell DF-855
Dual Honeywell XS-857A Mode S XPDR
Honeywell Primus 880 WX Radar (WU-880)
Dual Honeywell AZ-200 Air Data System
Air-Cell SATCOM ST3100
Triple Honeywell FMS Systems
Honeywell Triple Micro IRS Laser-Ref V
Dual Honeywell RT-300 Radio Altimeter
Honeywell Cockpit Voice Recorder - 2 Hour SSCVR
Honeywell DFDR - 88 Parameters
ELT-406-AF/AP (Tri-Frequency)
Dual Collins HF-9034A
Honeywell Selcal
Secondary Flight Display Meggitt MK3
Additional Features:
RVSM Capability
JAR Ops Compliant
60 Hz 115 VAC Cabin Outlets
EROS Oxygen Masks
4080 VHF Channels with 8.33 KHz Spacing
FM Immunity
ERDA Third Crew Member Seat w/ EROS Oxygen Mask
Cockpit, Fwd Cabin and Aft Cabin SATCOM Handsets
Telescopic Tow Bar
Maintenance Dedicated Laptop Computer
115 Cubic Feet Oxygen Bottle
First Aid (Therapeutic) Oxygen System
2 each 12 Man Life Raft
Entertainment System: Entertainment includes the Airshow
410, CD Player, Dual DVD Player, with 2ea 15" Bulkhead
Monitor and 4ea 6.5" Monitors
Interior:

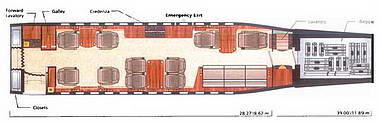

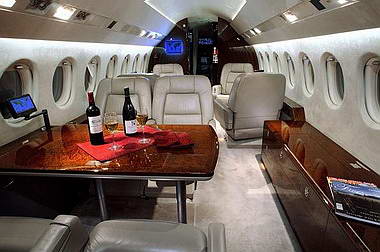

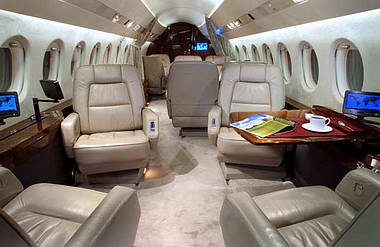

Fire blocked 13 passengers interior layout. The forward
section of the passenger cabin has a four-place club seating
with pull table. In the Mid-cabin there is a 4-place
conference group with a credenza opposite. The aft portion

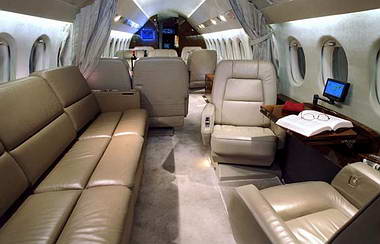

of the cabin features a 3-place divan opposite to a double

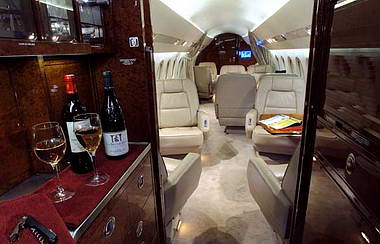

club seating with pull table. RH 36'' forward galley/bar
with refrigerator, warming oven, and hot cup, 30" LH side
auxiliary galley with storage capacity, entertainment system
controls, and the microwave oven, 17'' forward RH cabinet
with storage drawers. RH 40'' middle Cabinet (credenza),
35'' aft cabinet low height, for china storage. RH 25''
forward crew lavatory, and aft lavatory with "Rounded look".
Interior was redone January 2006 by Dassault.
Exterior:

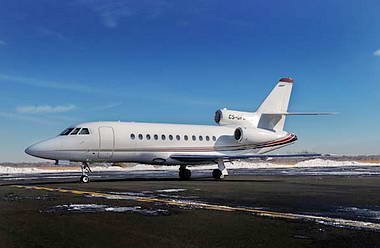

Overall White with Gray, Burgundy and Black stripes. Last
painted January 2006 by Dassault.
Maintenance:
Remaining Actual Next Due
Hours Cycles Date Hours Cycles
A Inspection 140 - 03/13/09 3,828 -
2A Inspection 445 - 09/12/09 4,133 -
3A Inspection 158 - 08/15/09 3,846 -
4A Inspection 458 - 02/14/10 4,146 -
A+ Inspection - - 11/28/08 - -
2A+ Inspection - - 02/14/09 - -
4A+ Inspection - - 02/14/10 - -
B Inspection 758 - - 4,446 -
2B Inspection 2,258 - - 5,946 -
3B Inspection 812 - - 4,500 -
4B Inspection 2,312 - - 6,000 -
C Inspection - 2,276 01/23/12 - 4,560
2C Inspection - 2,276 01/31/12 - 4,560
3C Inspection - 6,026 01/31/18 - 8,310 |
