Información de Contacto:
Dennis Andersen, President
Florida Jet Sales, Inc. - Jet Aviation, PBIA - 1516 Perimeter Road, Suite 201 - West Palm Beach, FL 33406
Phone: (561) 615-8231  /  Fax: (561) 615-8232
Website: --- e-mail: Dennis@flajet.com

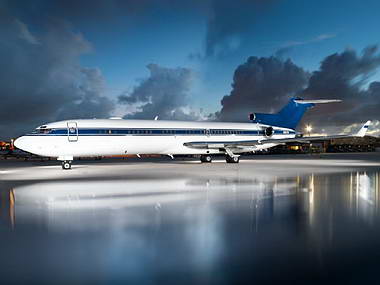

Business Jet - BOEING B727-212REW (VALSAN)

Airframe:
17,211.7 Total Hours
13,045 Total Landings
Centurian Aircraft Services Maintenance Program
Operated under FAA Part 91 - No Charter
Last C Check Inspection Completed-May 2007
Next due May 2009

Engines: Pratt and Whitney JT8D-217C/JT8D-17
#1 #2 #3
Total Hours: 5,707.7 hrs 15,640.3 hrs 5,707.7 hrs
Cycles: 2,742 11,547 2,742
Hours SOH: 153 hrs 423.8 hrs 153 hrs
Cycles SOH: 68 146 68

APU:
Time is 2,376.9 since new

Modifications:
Extended range tanks installed 1989 (10- tank system)
Winglets installed-September 1997
Access doors-self contained, retractable airstairs for forward passenger loading
VALSAN Engines installed 1989
Meets full-stage 3 noise specifications with no trade-offs
Meets EU 2002 noise criteria
Dual Mode S - TCAS System with Change 7
Enhanced Surveillance Compliant STC ST01142WI-D

Exterior:
Overall white with blue stripes.

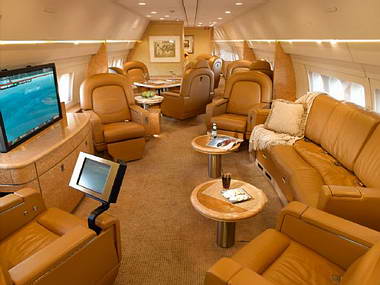

Interior:
This aircraft is in executive configuration and designed for luxurious travel. The VIP compartment consists of a five-place salon, stateroom with full washroom amenities and shower. 32 passenger
seats and four cabin attendants seats (currently operating with 19 belted passenger seats for Part 91 compliance) large aft gallery with facilities for hot meals, including microwave plus small forward galley. Three luxury lavs in addition to the VIP lav. Present executive interior completed in May 1999 at Raytheon, Ft. Lauderdale. This interior modification includes 17 new Aircraft Modular Products 900
LWS chairs and 2 series D2000 individual tracking divans. New carpet installed throughout aircraft in May 2008.

Additional Equipment:
ELT, Artex C-406-1
SecuraPlane 450 Security System, 52 Channels
Global Systems NDB2 Multiport Navigation Data Bank
Ryan Stormscope System
Altitude Alerter System
SAT-TAS Indicator System
Magnastar C-2000 Telephone System
Skytheater Inflight Entertainment System consisting of:
2 -42" gas plasma monitors
5 -20.1" LCD displays
14-10.4" AMX touch screens
2- LD / DVD players
2- VCRs
2- CD changers
2- Single CD players
115 Volt 60 Hertz Inverter Systems (2)
Cabin and VIP Compartment Telephone System
Airshow Genesis System
Direct TV System
Flight environments thermal and acoustic insulation blanket installed

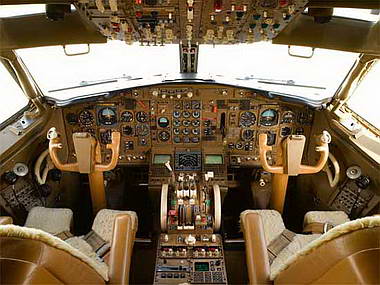

Avionics: Dual Collins FD110 562A-5FS Flight Directors
Dual Universal UNS-1C+ FMS w/GPS
Dual Honeywell HG480B 100 Air Data Computers
Sperry SP150-MV Autopilot
Honeywell Laser Nav II
Dual Collins 51Y7 ADFs
Dual Collins TDR 94D Mode S Transponders
Collins 51Z-4 Market Beacon Receiver
Primus 880 Color Weather Radar
Fairchild A-100 Cockpit Voice Recorder
Collins Public Address System
TCAS 94 System with Dual Dual Collins 618 HF Radios w/ SELCAL
Triple Collins 618M-4 Comms w/ 8.33 spacing
Dual Collins 51RV-48 Navs w/ FM Immunity
Dual Collins TV1920TCAS Vertical Gyros
Dual Sperry 2588302-4 Directional Gyros
Dual Collins 860F-4 Radio Altimeter
Dual Collins 860E-5 DME Receivers
Honeywell MCS-6000 Six Channel SatCom
Honeywell Mark VII EGPWS
Fairchild F-1000 Flight Data Recorder
RVSM Certified

Flight Origination: New York, USA

Flight Destination: City
Travel Time
Distance

Athens 9:00 Hours 4261 Nautical Miles
Rome 7:50 Hours 3706 Nautical Miles
Nice 7:20 Hours 3444 Nautical Miles
Paris 6:40 Hours 3132 Nautical Miles
London 6:25 Hours 3001 Nautical Miles
Los Angeles 5:10 Hours 2126 Nautical Miles
Seattle 5:10 Hours 2079 Nautical Miles
Caracas 4:15 Hours 1876 Nautical Miles
Mexico City 4:20 Hours 1803 Nautical Miles
Dallas 3:00 Hours 1183 Nautical Miles
Miami 2:20 Hours 945 Nautical Miles
