Avionics:
Engines: CFM-56-7B26
Left Right
Serial Number: 874433 874434
Time since New: 1798 1798
Cycles since New: 695 695
APU:
Model No. 131-9BN500LS
P/N 3800702-1
S/N P-5178
Time 1342
Cycles 14433
Weights:
Ramp Weight: 171,500 lbs
Take Off Weight: 171,000 lbs
Landing Weight: 134,000 lbs
Zero Fuel Weight: 126,000 lbs
True Empty Weight: 93,158.40 lbs
B.O.W.: 95,991.40 lbs

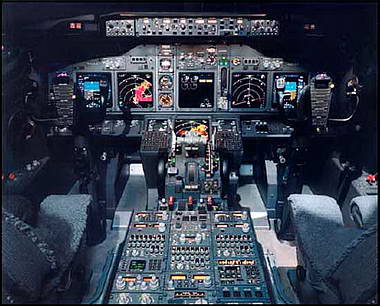

Avionics:
3 Rockwell Collins VHF Radios with 8.33 MHZ spacing
2 Rockwell Collins HF Radios
Dual Rockwell Collins Multi Mode Receivers
Dual DME's
Dual ADF's
Dual Smiths FMC
Honeywell Lasertrak
Honeywell Dual ADIRU (IRS)
Dual GPS Receivers
Rockwell Collins Dual Mode S Transponders with ELS/EHS/ES
Rockwell Collins Multi-Scan Color Weather Radar
Honeywell Enhanced GPWS
Heading Reference Switch for Polar Navigation True/Mag
Selection
Flight Dynamics HUD Model 2350
Honeywell MCS-6000 SATCOM with Magnastar C-2000 Telephone
System
Fixed ELT Artex Installation
PATS Aux Fuel Tank System, Five Tank Aft Configuration
Installed (2308 gal)
PATS four tank Fwd System in Storage
Long Range Passenger Oxygen System (3 bottles) with 3
Therapeutic Cabin Outlets
Securaplane Wireless Cabin Smoke Detector System
Securaplane Aircraft Security System
60 Gallon Water System with International Waterguard UV
Sterilizer Unit
BF Goodrich Wheels and Brakes
Electric A&C Products Window Shades
Electric Hi/Low Dining Tables
Mid-Cabin Galley and Buffet
Gaggenau Cooktop and Oven
Microwave Convection Oven
Trash Compactor |
